Description

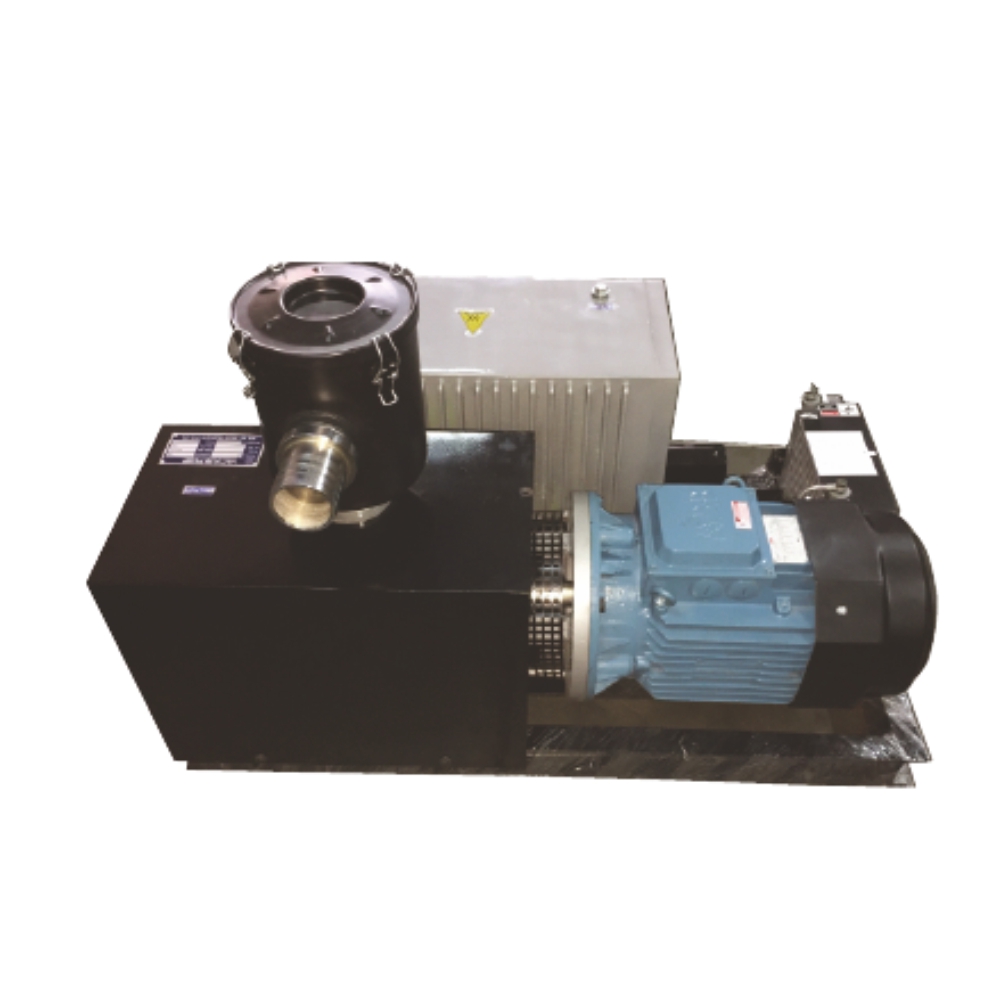

Oil Lubricated Vacuum Pump
FEATURES
- High water Vapour tolerance
- Compact & Simple Design
- Built in anti suck back system Quiet Operation
- High Pumping speed at complete vacuum range
Applications
- Jewellery Casting
- Packaging
- Rubber Moulding
- Botiling Plant
- Glass Lamination
- Shoe Moulding
- Thermo Forming
- Impregnation
- Wind Turbine Blade
- Food Processing
- Printing
- Vacuum Lamination
- Distillation
- Laboratories
- Pick & Place
- CNC Router
- Vacuum
- Wood Working Mechanism
TECHNICAL SPECIFICATIONS
| Model | Capacity | Vacuum In HV Version (mbar) | Motor (H.P.) Three Phase | Motor (H.P.) Single Phase | Oil Capacity (Liters) | Water Vapour Tolerance (mbar) | Water Vapour Capacity (Kg./Hr.) |
| A1 20 OL | 20 M/Hr | .5 | 1 | 1 | 1 | 30 | .250 |
| A1 25 OL | 25 M/Hr | .5 | 1 | 1 | 1 | 30 | .300 |
| A1 30 OL | 30 M/Hr | .5 | 1.5 | 1.5 | 1 | 30 | .400 |
| A1 40 OL | 40 M/Hr | .5 | 2 | 2 | 2 | 30 | .600 |
| A1 65 OL | 65 M/Hr | .5 | 2 | N/A | 2 | 30 | 1.4 |
| A1 100 OL | 100 M/Hr | .5 | 3 | N/A | 3 | 30 | 2 |
| A1 160 OL | 160 M/Hr | .5 | 5 | N/A | 5 | 30 | 3 |
| A1 220 OL | 220 M/Hr | .5 | 7.5 | N/A | 5 | 30 | 4 |
| A1 300 OL | 300 M/Hr | .5 | 10 | N/A | 7 | 30 | 6 |
OIL LUBRICATED VACUUM PUMP FOR PASTA PRODUCTION
| Model | Pasta Production Capacity Up to | Capacity In M3/Hr | Ultimate Vacuum (Closed Gas Ballast) | Ultimate Vacuum (Open Gas Ballast) | Water Vapour Capacity | Oil Capacity | Motor HP | Motor RPM |
| A1 50 HF | 150 Kg/Hr | 50 M3/Hr | 0.5 mbar | 4 mbar | 1.2 Kg/Hr | 2.5 Liters | 2 HP | 1440 |
| A1 65 HF | 200 Kg/Hr | 65 M3/Hr | 0.5 mbar | 4 mbar | 1.2 Kg/Hr | 2.5 Liters | 2 HP | 1440 |
| A1 100 HF | 350 Kg/Hr | 100 M3/Hr | 0.5 mbar | 4 mbar | 2.5 Kg/Hr | 3 Liters | 3 HP | 1440 |
